We are an International Team of young and ambitious engineers/inventors and people with other talents with more than 10 years of experience in engineering.


Our Portfolio includes more than 20 inventions with 10 patents.


All of our devices undergo quality control and independent third party testing.


Currently we conduct development of devices that generate power using clean renewable resources from environment. Several devices are under development and acquisition, that will also be able to generate power.


We are located in Seoul, South Korea.

For more than 3 years our team has been developing a fossil fuel free generator which is able to generate energy.


We have conducted a scientific research and have achieved a few fully functioning models.


At present the company Infinity SAV is preparing to launch a mass production of a fuel free generator for consumers.


We will manufacture the first 100 units of fuel free generator which will exclusively be handed to our distributors.

Source



Know-how is a symbiosis of permanent magnets and bifilar coils.

Bifilar coils are installed with a specific shifted angle to convert the parasitic current into usable energy. Permanent magnets are required to maintain the rotation.

Initial start is performed by a battery or any other external source of energy. After a minute or so when the device achieves needed RPM the external sources of energy can be unplugged.

The device is able to work in autonomous mode and maintain its RPM in optimized mode by asynchronous motor with a special software, which controls RPM. The output power depends on the speed of rotation (RPM).



50% of the generated energy will be spent by motor, while the remaining 50% can be used by the consumer for his own purposes.



For example, the device of 6kW is capable of producing 3kW for consumer, another 3kW will be spent to maintain required RPM at full load.

The know-how device can be made for any type of voltage output with frequency of 50-60Hz:

  • 380V 3-phase 50-60Hz

  • 220V 50-60Hz

  • 110V 50-60Hz

Electromagnetic generator will be produced in 3kW power output.

If a larger power generator is needed then 2 or more power generators can be connected and synchronized to produce 6kW, 9kW or more.





 Advantages

  • Production cost will be cheaper than production of wind turbines or solar panels


  • On average depending on the region the generator will pay for itself in 1-2 years.


  • Small size compare to other power generating systems with the same power output


  • Dimensions: 500x300x400 mm


  • Weight: ~120kg


  • Special installation is not required


  • Mobility: Can be easily moved to any location

A mass production of this invention has not been established and individual units are not available for sale yet.

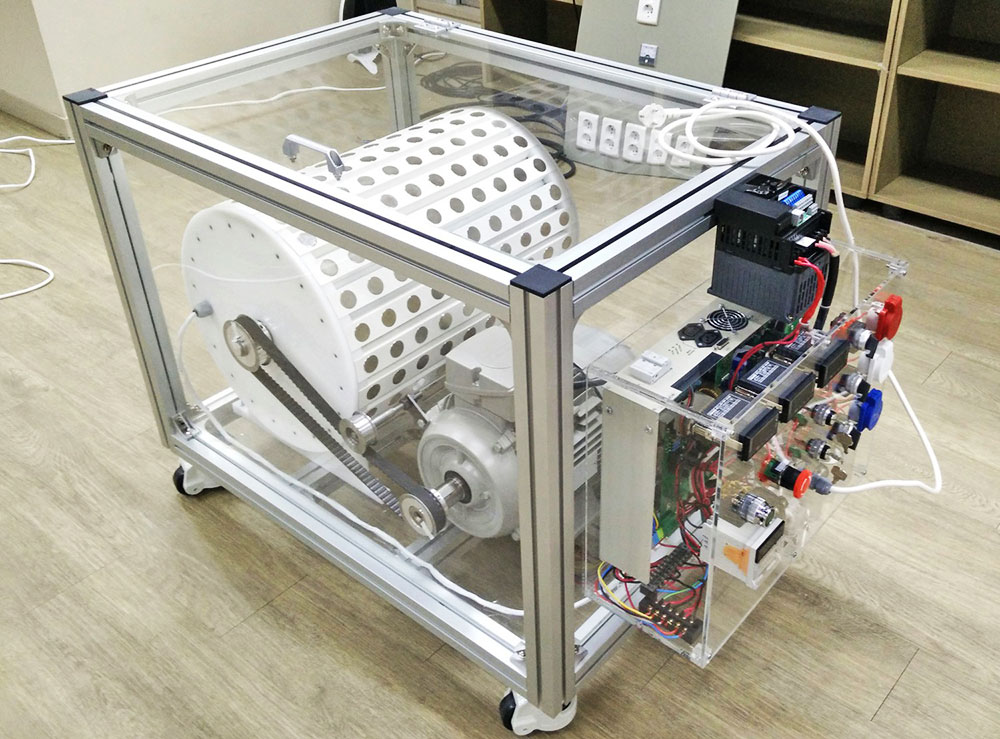

Video demonstration of Magnetic Energy Generator (presentation model) up to 10 kW


































 Magnet Motor Free Energy Generator

-   Do they Really Work?   -
March 31, 2017

from NuEnergy Website









To understand what a magnet motor free energy generator is and if they even work, we should first take a closer look at the specifics of energy and what a generator is capable of doing.

A magnetic motor (or magnetic energy generator) can provide electricity without having to use fuel. They are typically built with magnets and copper wire coils to provide a greener alternative to electricity. Now think back to science class and the chapter on magnets. Like poles will repel each other while opposite poles attract each other.



Once the magnetic motor is started, it can be treated as a turbine that you can receive electrical energy from.



Therefore, they are useful during power outages in the midst of a storm, for example. Most magnetic generators you think of in this type of scenario, however, are running off fuel.



Now, think what would happen if you didn’t have the fuel:

The generator simply would not run.

This is where the magnet theory comes into play.

We all learned that you need a source to generate free electricity. The standard generators that come to mind use fuel as the output power, magnet generators are claiming to run purely off a magnetic arrangement.

Free electricity is an alternative energy source that is shown to be more efficient and cleaner than what we currently use. It is also a more affordable energy source. The law of energy states that the total energy of an isolated system remains constant and is said to be conserved over time.



Energy cannot be created or destroyed. Instead, it is transformed from one form to another.

Perpetual motion machines cannot exist according to this law because no system without an external energy supply can deliver an unlimited amount of energy to its surroundings. With a magnet motor, free energy generator wouldn’t work.

Conventional science is quick to say that we cannot pull energy from an environmental source but we have been utilizing different forms of environmental energy such as hydroelectric power, solar panels, tidal power systems, and geothermal energy systems.








What is Free Energy?

Free energy is a thermodynamic quantity equivalent to the capacity of a system to do work.



We can obtain energy from sources that do not require an input that we have to pay for such as other forms of energy including fuel, oil, and coal. Free energy is what we can find from our local environment and use without having to suffer costs.



Conventional science is out of date and needs to be upgraded to reflect our society.



We utilize free energy in different ways and we do not require a paid source of energy.



Magnets Creating Energy

Magnetic fields pull and push electrons in objects near them to make them move.



When a magnet is moved quickly through a coil of wire, the electrons will move and make electricity. Electromagnetism is the combination of electricity and magnetism.



Spinning magnets can cause an electric current to begin to flow and create free energy.






What are Electromagnets?

Electromagnets have a soft metal core that is made into a magnet by the passage of an electric current through a coil that is surrounding it.



The strength of the electromagnet can be changed by altering the amount of the electric current that is flowing through it. The poles can also be reversed by simply reversing the flow of the electricity.






What are Permanent Magnets?







Permanent magnets, on the other hand, are magnets that retain the magnetic properties even in the absence of an inducing field or current.



These magnets create their own magnetic field that is persistent and continuous.



They provide continuous power if the magnets are arranged in such a way that the lines of the magnetic flow are no longer symmetrical and can provide a useful directional force.






 The Adams Motor







The Adams Motor (see Perpetual Motion) is an example of the use of magnetism as a free energy source.



The magnets in the motor are attracted to the iron cores of the electromagnets and they rotate the drive shaft and power the motor.



The moving magnets generate electrical power into the windings of the electromagnets and this is what is used to charge the battery.

The permanent magnets reach the electromagnets and the electric power is then fed to the windings and can overcome the backward pull that could potentially hinder the drive shaft’s rotation.



When that power is cut off, the EMF pulse is captured and use to continue to charge the battery.



Finally, additionally mounted pickup coils can generate more power with extra currents.






 Charles Flynn







Charles Flynn used an electrical screening system to prevent the magnetic drag that can hinder the drive shaft rotation. Instead of using electromagnets like in the Adams Motor, he uses permanent magnets.

PPMT or Parallel Path Magnetic Technology uses permanent magnets that are controlled by a field coil in parallel magnetic circuits.



Magnetic fields are steered by electrical currents.



The electrical currents are not the cause of the field; they are already present and just align with the electrical current.






The Problem

The magnetic energy that is used to run a motor over time does not require an outside energy source to generate electricity like the sun or water.



It is running purely on the magnet arrangement. However, over time, the magnets can lose their magnetism, so they will have to be replaced at some point to continue to generate electricity.



The biggest problem we are facing is trying to figure out exactly what type of magnets would work best for this free energy source.








Conclusion

Magnetic energy will never be 100% free.



There will always be some maintenance or startup costs involved, such as when the magnets will need to be replaced. The point of the magnet motor is to provide an alternative energy source so that we do not have to solely rely on fossil fuels.



The magnets are also not doing harm to the environment. The biggest issue is going to be the cost of the replacement magnets.

A magnet motor energy generator works, but the science behind this revolutionary concept needs some more developing and work through to become a reliable energy source to reduce our dependence on fossil fuels.
