by Kenneth Chang

April 5, 2014

from HoustonChronicle Website

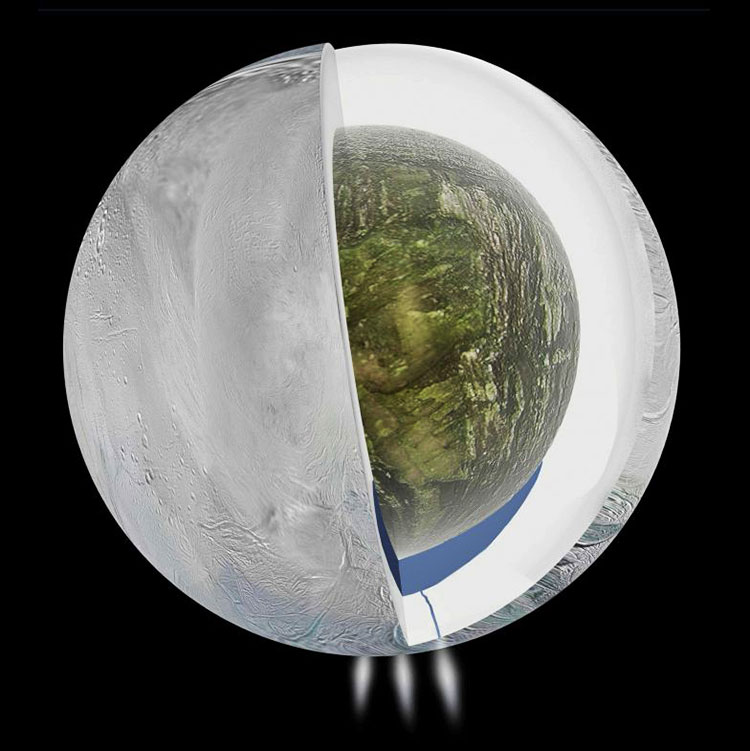

This illustration shows the possible interior of Saturn's moon Enceladus,

an icy outer shell and a low density, rocky core

with an ocean sandwiched in between.





 Inside a moon of Saturn, beneath its icy veneer and above its rocky core, is a sea of water the size of Lake Superior, scientists announced last week.

The findings, published in the journal Science, confirm what planetary scientists have suspected about the moon, Enceladus, ever since they were astonished in 2005 by photographs showing geysers of ice crystals shooting out of its south pole.

"What we've done is put forth a strong case for an ocean," said David Stevenson, a professor of planetary science at the California Institute of Technology and an author of the Science paper.

For many researchers, this tiny, shiny cue ball of a moon, just over 300 miles across, is now the most promising place to look for life elsewhere in the solar system, even more than Mars.

"Definitely Enceladus," said Larry Esposito, a professor of astrophysical and planetary sciences at the University of Colorado, who was not involved in the research.



"Because there's warm water right there now."





NASA's Cassini probe

Enceladus is caught in a gravitational tug of war between Saturn and another moon, Dione, which bends its icy outer layer, creating friction and heat.



In the years since discovering the geysers, NASA's Cassini spacecraft has made repeated flybys of Enceladus, photographing the fissures (nicknamed tiger stripes) where the geysers originate, measuring temperatures and identifying carbon-based organic molecules that could serve as building blocks for life.

Cassini has no instruments that can directly detect water beneath the surface, but three flybys in the years 2010-12 were devoted to producing a map of the gravity field, noting where the pull was stronger or weaker.



During the flybys, lasting just a few minutes, radio telescopes that are part of NASA's Deep Space Network broadcast a signal to the spacecraft, which echoed it back to Earth.



As the pull of Enceladus' gravity sped and then slowed the spacecraft, the frequency of the radio signal shifted, just as the pitch of a train whistle rises and falls as it passes by a listener.







Gravity clue at the pole




This undated photo provided by NASA on April 2, 2014 shows Saturn's moon Enceladus.

The "tiger stripes" are long fractures from which water vapor jets are emitted.

Scientists have uncovered a vast ocean beneath the icy surface of the moon,

they announced Thursday, April 3, 2014.

Italian and American researchers made the discovery using Cassini,

a NASA-European spacecraft still exploring Saturn and its rings

17 years after its launch from Cape Canaveral.

(AP Photo/NASA, JPL, Space Science Institute)



 Using atomic clocks on Earth, the scientists measured the radio frequency with enough precision that they could discern changes in the velocity of Cassini, hundreds of millions of miles away, as minuscule as 14 inches an hour.

They found that the moon's gravity was weaker at the south pole. At first glance, that is not so surprising; there is a depression at the pole, and lower mass means less gravity.



But the depression is so large that the gravity should actually have been much weaker.

"Then you say, 'Aha, there must be compensation,' " Stevenson said. "Something more dense under the ice. The natural candidate is water."

Liquid water is 8 percent denser than ice, so the presence of a sea 20 to 25 miles below the surface fits the gravity measurements.

"It's an ocean that extends in all directions from the south pole to about halfway to the equator," Stevenson said.

The underground sea is up to 6 miles thick, much deeper than a lake.




This photo provided by NASA shows water vapor jets,

emitted from the southern polar region of Saturn's moon Enceladus.

Scientists have uncovered a vast ocean beneath the icy surface of the moon,

they announced Thursday, April 3, 2014.

Italian and American researchers made the discovery using Cassini,

a NASA-European spacecraft still exploring Saturn and its rings

17 years after its launch from Cape Canaveral.

(AP Photo/NASA, JPL, Caltec, Space Science Institute)



 "It's a lot more water than Lake Superior," Stevenson said. "It may even be bigger. The ocean could extend all the way to the north pole."

The conclusion was not a surprise, said Christopher McKay, a planetary scientist at NASA Ames Research Center in Mountain View, Calif., who studies the possibility of life on other worlds, ,

 "it confirms in a really robust way what has been sort of the standard model."





Checking for microbes

It also makes Enceladus a more attractive destination for a future mission, especially one that would collect samples from the plumes and return them to Earth to see if they contain any microbes.

The discussion on the possibility of extraterrestrial life in the solar system centers on four bodies:

McKay, who was not involved with gravity measurements, noted that only Enceladus was known to possess the four essential ingredients for life, at least as it exists on Earth: liquid water, energy, carbon and nitrogen.

"I would say it's our best bet," he said.
