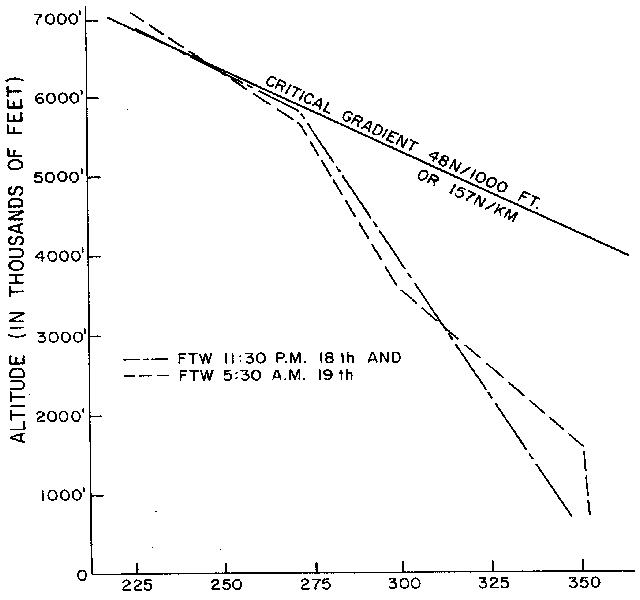

Figure 3

Refractivity profiles at Ft. Worth, Texas, Carswell AFB, 11:30 p.m. September 18 and 5:30 a.m., September 19, 1957. Note critical gradient of N for microwave ducting in the vicinity of 6000 feet to 7000 feet altitude.
